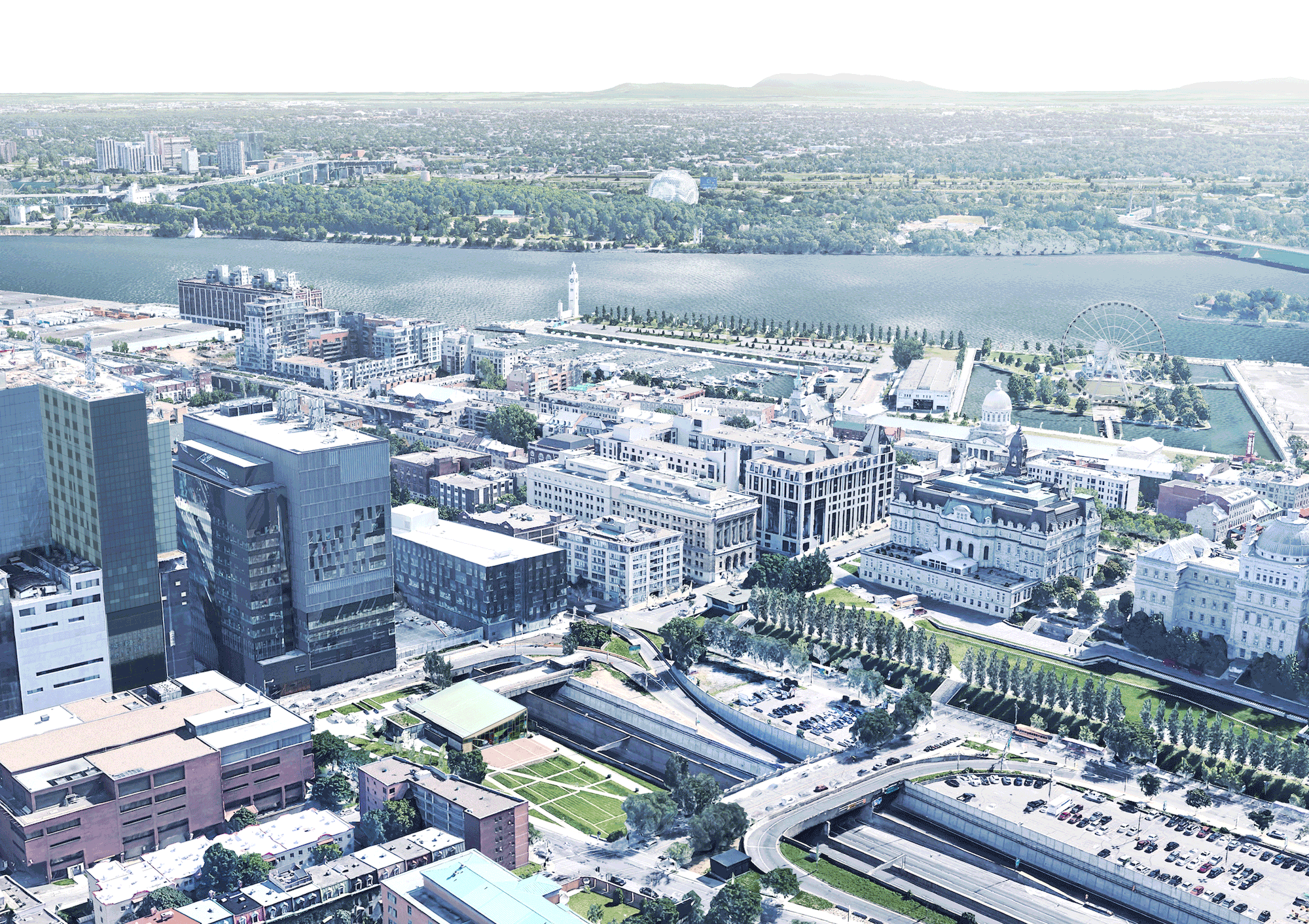

P01-091-1 Champ-De-Mars_Image EH 01_LR.j

LOCATION

Champ de Mars, Montreal, Canada


DATE

2017 - 2018


SIZE

2.3 ha


TYPE

Two Stage International Urban Design Competition

STATUS

Finalist, Assignment Completed

CLIENT

City of Montreal

PROJECT TEAM

Martin Arfalk, Patrick Verhoeven, Danny Bridson, Cyril Pavlu, Katerina Vondrova,

Andrei Deacu

COLLABORATORS

Sid Lee Architecture, Option Aménagement, GBi Engineers

anno - Place des Montréalaises

A park to unify a divided Montreal

In the early 1970’s the City of Montreal constructed the Ville-Marie expressway. For 45 years the sunken roadway has been a divided Old and New Montreal. The Place des Montréalaises competition invited five teams to imagine how an important section of the expressway disconnect can be unified and healed.



The park’s iconic connection is a dramatic, circular bridge. Its form - once applied to the site - offers sensitive and contextual solutions to the park’s inherent challenges. The bridge offers two paths: the first is fast and functional - a quick and efficient route for daily commuters and workers. The second is an experiential and accessible path that gradually lifts pedestrians over Saint-Antoine street on a smooth slope, curving around to connect Champ-de-Mars to the new park.



The landscape that surrounds the bridge is inspired by the stories of twenty two woman from Montreal’s past. Eight ‘pioneers’ to celebrate and fourteen victims to remember. The proposal weaves their stories into the park, creating a discoverable landscape of the City’s past. The women are commemorated with a combination of planting selection, urban furniture and celebratory elements that highlight their lives, but also introduce a sense of their values and character into the place.



Located at a vital urban intersection, Place des Montréalaises caters to a diverse set of spatial, cultural and logistical needs. Anno creatively overlaps interventions in a meaningful way to generate optimal public space solutions. When combined the spaces, infrastructure, commemorations and plantings create a rich experience, concentrating public life and maximising the public’s return on investment.

P01-091-1 Champ-De-Mars_Story Diagrams 0

Unifying disconnected districts

Anno is a bold vision for the Champ de Mars area that bridges the divide between the old and the new city in a way that is rooted in ‘Montreality’

P01-091-1 Champ-De-Mars_Story Diagrams 0
P01-091-1 Champ-De-Mars_Story Diagrams 0
P01-091-1 Champ-De-Mars_Story Diagrams 0

Three spatial strategies

An iconic connection , a discoverable landscape and welcoming pivot points uncover and maximise the potentials of the long neglected urban space.

P01-091-1 Champ-De-Mars_Illustration Pla

More from less

By overlapping infrastructure, spaces and surfaces the park focuses public life and provides efficient, quality places.

P01-091-1 Champ-De-Mars_Image EH 02_LR.j

Infrastructural icon

The bright and textured materiality of the bridges combined with its distinct form and sensitive integration into the site provides a strong and memorable identity to the space.

P01-091-1 Champ-De-Mars_Plan Diagrams 09
P01-091-1 Champ-De-Mars_Plan Diagrams 07
P01-091-1 Champ-De-Mars_Plan Diagrams 08
P01-091-1 Champ-De-Mars_Plan Diagrams 13
P01-091-1 Champ-De-Mars_Plan Diagrams 12
P01-091-1 Champ-De-Mars_Plan Diagrams 11
P01-091-1 Champ-De-Mars_Plan Diagrams 10
P01-091-1 Champ-De-Mars_Plan Diagrams 14

Strong form - sensitive landing

Despite its seemingly strict form, the circular bridge is a contextually sensitive choice that provides solutions to many of the site’s inherent challenges.

P01-091-1 Champ-De-Mars_Image EH 03_LR.j

Climatic considerations

The floor of the square is separated into ‘flow’ and ‘stay’ spaces that allow for fast and simple snow clearance, while the heated bridge is usable year round.

P01-091-1 Champ-De-Mars_Axo Diagrams 09_
P01-091-1 Champ-De-Mars_Axo Diagrams 01_
P01-091-1 Champ-De-Mars_Axo Diagrams 05_
P01-091-1 Champ-De-Mars_Axo Diagrams 08_
P01-091-1 Champ-De-Mars_Axo Diagrams 02_
P01-091-1 Champ-De-Mars_Axo Diagrams 06_
P01-091-1 Champ-De-Mars_Axo Diagrams 07_
P01-091-1 Champ-De-Mars_Axo Diagrams 04_
P01-091-1 Champ-De-Mars_Axo Diagrams 03_

Eight pioneers

Eight women from Montreal’s past are commemorated in the park. Through a local tree species, commemorative elements and programmatic choice.

P01-091-1 Champ-De-Mars_Image EH 01_LR.j

New perspectives

The curving form of the bridge frames views in all directions, offerings new perspectives on both the New and Old City.
